Pushing the Limits
1. Understanding VFDs and Frequency
Variable Frequency Drives (VFDs) are clever devices, aren't they? They're essentially the brains behind controlling the speed of electric motors, and they do this by, you guessed it, varying the frequency of the electrical power supplied to the motor. Now, the standard frequency in many parts of the world, including North America, is 60 Hz. This means the alternating current (AC) completes 60 cycles per second. So, the burning question: can a VFD go higher than 60 Hz? Well, let's dive into that.
The default assumption for many is that 60 Hz is some kind of unbreakable barrier. Think of it like the speed limit on the highway. But in the world of VFDs, things arent always so rigid. The answer isnt a simple yes or no. It depends on several factors, including the motor itself, the VFD's capabilities, and what you're actually trying to achieve.
Imagine you're driving a car. You can usually push it past the speed limit, but that doesn't mean it's a good idea. There are potential consequences, right? Similarly, exceeding 60 Hz with a VFD might be possible, but it could come with risks. And that brings us to considering what those risks might be.
Ultimately, remember that a VFD's job is to orchestrate a dance between power supply and motor operation. Simply cranking up the frequency without considering all the contributing factors can lead to equipment failure, inefficiency, or even dangerous situations. Proceed with caution!
2. When Higher Frequencies Make Sense (and When They Don't)
Okay, so we've established that exceeding 60 Hz can be done, but should it? That's the real question. In certain applications, running a motor at a higher frequency can boost its speed beyond its normal operating range. This might be desirable in situations where you need increased throughput or quicker response times. Think of a conveyor belt system where a slightly faster pace dramatically increases the amount of product moved. Or perhaps a pump needing to deliver a higher flow rate for a short period.
However, running a motor beyond its design specifications comes with potential downsides. One significant concern is heat. Motors are designed to dissipate heat within a specific operating range. Exceeding the frequency often means running the motor faster, generating more heat. If the cooling system isn't up to the task, the motor windings could overheat and lead to premature failure — a very expensive paperweight.
Another critical factor is the motor's mechanical limitations. Just like a car engine has a redline, a motor has a maximum speed it can safely handle. Exceeding this speed can cause excessive vibration, stress on bearings, and potentially catastrophic failure of the motor itself. Before you even think about turning that dial, consult the motor's datasheet and specifications. It's your best friend in this scenario.
And let's not forget about the load. Is the driven equipment designed to handle the increased speed? For example, if you're increasing the speed of a centrifugal pump, the pressure and flow rate will increase, potentially exceeding the pressure limits of the piping system. Always consider the entire system, not just the motor.
3. The Nitty-Gritty

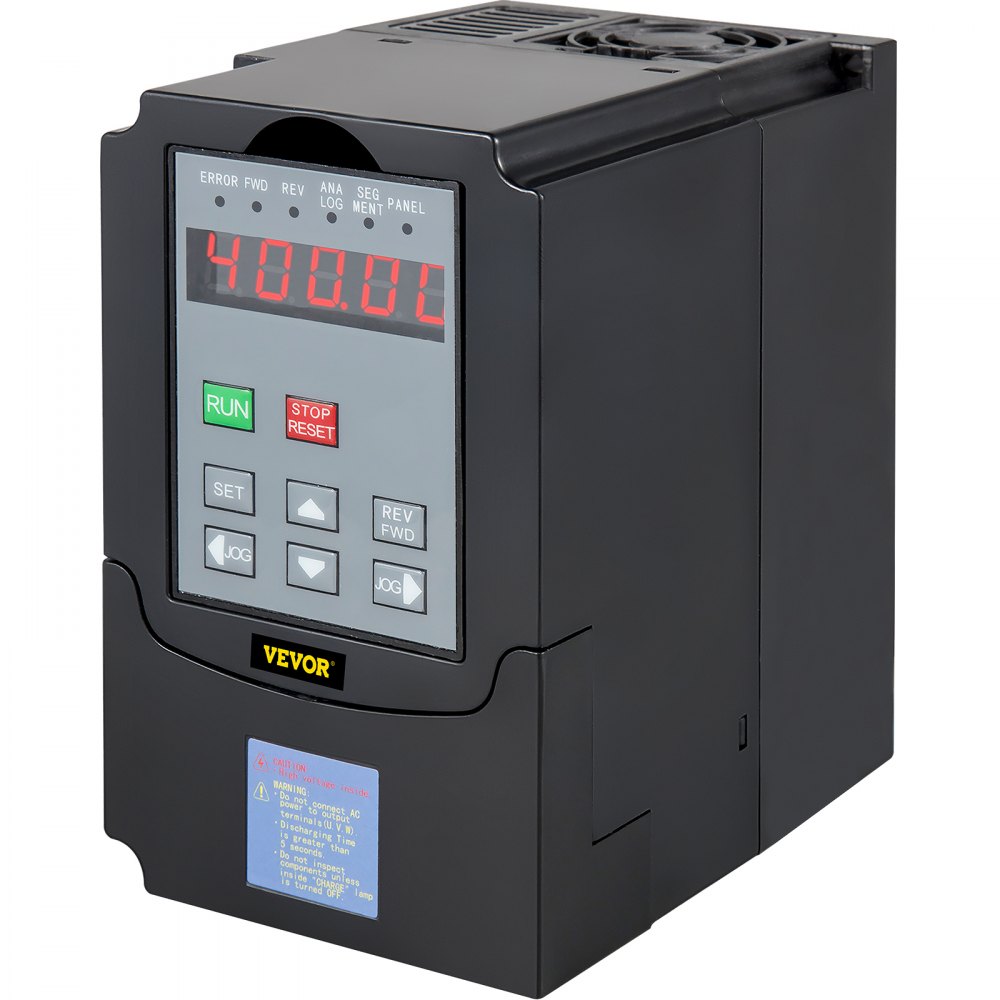

Alright, let's get a little more specific. How high can a VFD actually go above 60 Hz? Well, again, it depends. Some VFDs are designed to operate at frequencies much higher than 60 Hz, even up to 400 Hz or more. These are typically used in specialized applications, such as high-speed spindles in CNC machines or specialized testing equipment. However, these applications require motors and driven equipment specifically designed for those higher frequencies.
For a standard induction motor, exceeding 60 Hz usually involves a trade-off. As you increase the frequency, the motor's torque typically decreases. This is because the magnetic flux in the motor starts to weaken at higher frequencies. So, while you might get more speed, you'll have less "oomph" to actually do work. It's like trading horsepower for a spoiler on your car — looks cool, but doesn't always improve performance.
Many modern VFDs have built-in protection features that can help prevent damage to the motor. These features include overload protection, overvoltage protection, and overcurrent protection. These protections can automatically shut down the motor if it exceeds safe operating limits, helping to prevent costly repairs or replacements. Make sure you enable and properly configure these protections before experimenting with higher frequencies.
Before even considering to crank up the hertz, its important to consult the motor manufacturer's specifications. This datasheet will tell you the maximum safe operating speed and frequency for the motor. Don't guess! Guessing could lead to disaster. These documents are more precious than gold when considering modifications!
4. VFD Settings and Motor Parameters
Diving into the VFD's settings is like learning a new language, isn't it? But it's essential if you're planning to tweak the frequency. One crucial setting is the motor nameplate data. This information, which includes the motor's voltage, current, speed, and frequency, needs to be accurately entered into the VFD. This allows the VFD to properly control the motor and protect it from damage.
Another important setting is the V/Hz ratio. This ratio determines the voltage supplied to the motor at a given frequency. Maintaining the correct V/Hz ratio is critical for ensuring that the motor operates efficiently and doesn't overheat. As you increase the frequency above 60 Hz, you may need to adjust the V/Hz ratio to compensate for the decrease in torque. Many VFDs offer preprogrammed V/Hz curves tailored to specific applications, but it's always a good idea to double-check that the settings are appropriate for your motor and load.
Consider the ramp-up and ramp-down times. These settings control how quickly the VFD accelerates and decelerates the motor. Rapid acceleration or deceleration can put excessive stress on the motor and driven equipment, especially at higher frequencies. Gradual ramp-up and ramp-down times can help to minimize these stresses and extend the life of your equipment.
Finally, don't forget to monitor the motor's temperature. Many VFDs have built-in temperature monitoring capabilities, or you can use an external temperature sensor. If the motor temperature exceeds its rated limit, reduce the frequency or stop the motor altogether. It's much better to err on the side of caution than to risk a costly repair.
5. The Golden Rule
Before we wrap up, let's reiterate the most crucial point: safety. Messing with electrical equipment can be dangerous, especially if you don't know what you're doing. Always disconnect the power before working on a VFD or motor. Follow all safety precautions outlined in the VFD's manual and the motor's documentation. If you're not comfortable working with electrical equipment, hire a qualified electrician.
Think of it this way: electricity is like a wild animal. Treat it with respect, and it will serve you well. But disrespect it, and it can bite you hard. Always prioritize safety, and never take shortcuts. A little bit of caution can go a long way in preventing accidents and injuries.
Consult with experts when in doubt. If you're unsure whether it's safe to run a motor above 60 Hz, or if you have any questions about VFD settings, don't hesitate to consult with a qualified engineer or electrician. They can provide valuable guidance and help you avoid costly mistakes. Remember, getting it right the first time is always cheaper than fixing it later.
And finally, keep records of any changes you make to the VFD settings. This will help you to troubleshoot problems if they arise, and it will also make it easier to revert to the original settings if necessary. A simple spreadsheet or notebook can be invaluable for tracking your experiments and ensuring that you don't lose track of your modifications. And most importantly, document everything! It's good practice, and makes your findings repeatable.
