The Two-Step Tango
2. Step 1

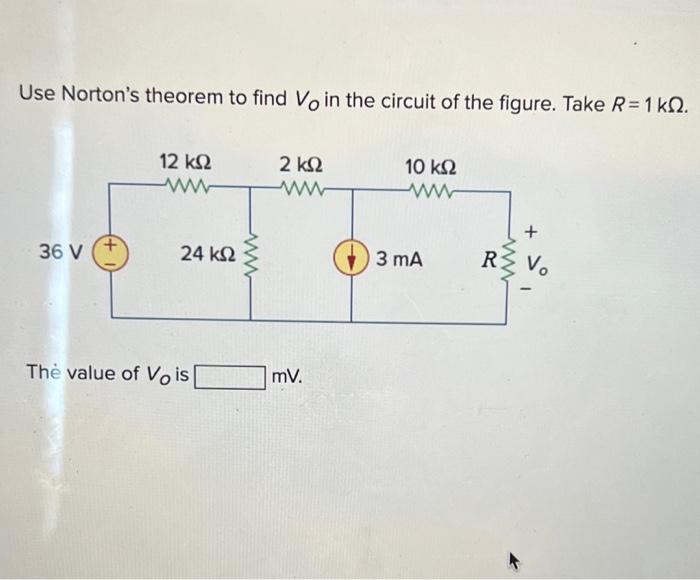

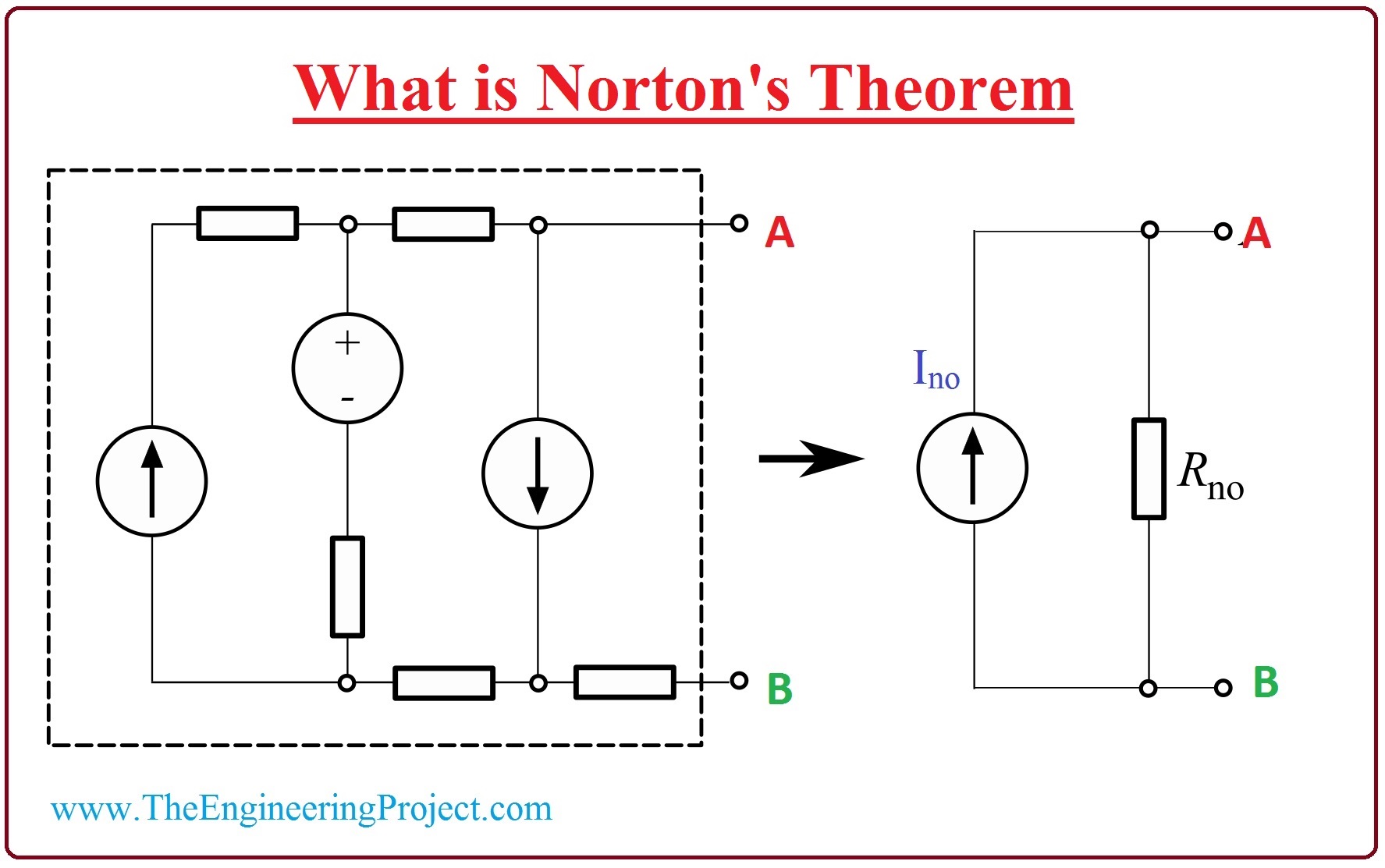

Alright, let's get our hands dirty. The first step in this Norton dance is finding the Norton current, which we'll lovingly call IN. The trick here? Short-circuit the terminals where you want to find the equivalent circuit. That's right, imagine taking a big ol' wire and connecting those two points directly. This creates a path of zero resistance, so all the current will flow through it.
Now, with your short circuit in place, calculate the current flowing through that short. This is your Norton current, IN. Remember to use any circuit analysis techniques you know — Ohm's Law, Kirchhoff's Laws, nodal analysis, mesh analysis — whatever works best for the circuit. Don't be afraid to dust off those textbooks! The good news is, shorting the terminals often simplifies the circuit, making the calculation a little easier.
Think of it like this: IN is the maximum current the equivalent circuit can deliver. It's the circuit's potential to push current through a load. So, if youre feeling particularly brave, you could think of it as the circuit's "electric muscle," showing how much "oomph" it can provide.
Be careful with your current direction. Always define a direction when calculating IN. This direction is important because it tells you the direction of the current source in your Norton equivalent circuit.
3. Step 2
With the Norton current safely in our grasp, it's time to tackle the Norton resistance, RN. This step is a bit like playing hide-and-seek with the power sources in your original circuit. To find RN, you need to deactivate all independent sources within the original circuit. This means turning off voltage sources by replacing them with short circuits and turning off current sources by replacing them with open circuits.
After you've banished all the power sources, look back at the terminals where you created the short circuit earlier. Now, calculate the equivalent resistance looking into those terminals. This is your Norton resistance, RN. Again, use whatever circuit analysis techniques youre comfortable with. Series and parallel combinations are your friends here.
So, what does RN actually represent? It's the internal resistance of the equivalent circuit. Think of it as the circuit's "stubbornness" to let current flow. The higher the resistance, the more difficult it is for current to pass through. It limits the amount of current the source can actually supply to a load.
Make sure you are calculating the equivalent resistance from the correct perspective looking back into the open terminals. A common mistake is calculating the resistance of the whole circuit instead of from the perspective of the open terminals.
